Downstream Equipment
Leading Manufacturers, Exporters and Wholesaler of Cutting Machine, Tilting Unit, Traction Unit, Spray Cooling Tank and Vacuum Cooling Tank from Ahmedabad.
| Business Type | Manufacturer, Exporter, Supplier |
| Drive System | Servo-driven Carriage And Tool Movement For High Accuracy |
| Control System | PLC With Touchscreen HMI For Parameter Settings |
| Cutting Speed | High-speed Forward Movement For Faster Cutting Cycles |
| Pipe Diameter Range | Suitable For Plastic Pipes From 16 Mm To 630 Mm |
| Cutting Type | Automatic Dust-free Precision Cutting System |
| Cutting Accuracy | Uniform Cutting Even With Slight Pipe Shape Irregularities |
| Cutting Flexibility | Supports Multiple Cutting Lengths In A Single Production Line |
| Tool Life Optimization | Optimized Cutting Speed Increases Cutting Tool Lifespan |
| Material Compatibility | Suitable For PVC, High-filled, And Special Plastic Materials |
| Machine Structure | Robust Heavy-duty Design For High-speed Continuous Operation |
The ECM is an automatic cutting machine for plastic pipes from 16 to 630 mm. The advanced technology ensures uniform, dust-free cutting and is relatively insensitive to pipe shape irregularities. Tool movement and carriage are controlled by a servo drive for maximum precision.
Advantages :
- Multiple cutting lengths in one line
- Improved lifetime of cutting tools because of optimal cutting speed
- Faster movement towards the pipe which results in faster cutting
- Most parameter settings on touchscreen
- Excellent cut for any socketing device
- Robust design for high-speed lines and special PVC/high-filled materials
| Business Type | Manufacturer, Exporter, Supplier |
| Application Stage | Final Stage Of Extrusion Line For Pipe Handling And Stacking |
| Structural Design | Heavy-duty Rigid MS (Mild Steel) Construction For Durability |
| Operating System | Pneumatic Actuation System For Smooth Tilting Operation |
| Function | Gentle Handling And Controlled Stacking Of Finished Pipes |
| Control System | Dual Limit Switch Operation For Automated Coordination |
| Cutter Synchronization | One Limit Switch Provides Feedback To Pipe Cutter For Timing Control |
| Tilting Mechanism | Second Limit Switch Controls Tilting Movement Of Pipes |
| Surface Protection | Rubber Pads Made From Imported High-quality Rubber To Prevent Damage |
| Automation Level | Fully Automated Operation Integrated With Extrusion Line |
| Output Handling | Ensures Safe, Aligned, And Ready-for-dispatch Pipe Stacking |

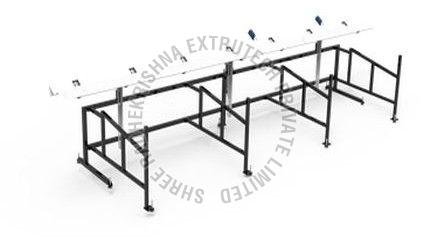

The final step in the production line, our pneumatic tilting units ensure gentle handling and stacking of finished pipes, ready for dispatch. Dual limit switches coordinate with the cutter for seamless, automated operation.
Advantages :
- Rigid heavy-duty MS structure
- Rubber pad made from imported rubber
- Pneumatically operated
- The operation of two limit switches – one for pipe cutter feedback and others for tilting the pipe
| Business Type | Manufacturer, Exporter, Supplier |
| Material | MS (Mild Steel), Rubber |
| Structural Design | Heavy-duty Rigid MS Frame For High Stability |
| Drive System | High-precision Servo Motor-based Control System |
| Control System | PLC + HMI Operated For Easy Monitoring And Automation |
| Track Configuration | Available In 2-track, 4-track, And 6-track Models |
| Pulling Mechanism | Pneumatically Operated Gripping System For Consistent Force |
| Gripping Pads | High-grip Rubber Pads Made From Imported Durable Rubber |
| Application Compatibility | Suitable For Column Pipes And Agricultural Pipes |
| Pulling Accuracy | Ensures Uniform Pipe Dimensions And Surface Finish |
| Speed Synchronization | Fully Synchronized With Extrusion Line Speed For Stability |
| Grip Design | Special High-gripping Pad Design For Slip-free Operation |
Our robust traction units provide consistent and reliable pulling force, crucial for maintaining pipe dimensions and surface quality. Available in multiple track configurations with servo motor control for precision.
Advantages :
- Rigid heavy-duty MS structure
- Rubber pad made from imported rubber
- Pneumatically operated
- Servo base panel control
- HMI-PLC Operated
- Specially Thick thin Arrangement for Column pipe & Agri pipe
- High Gripping Pad design, available in Two, Four & Six track
| Business Type | Manufacturer, Exporter, Supplier |
| Application Position | Installed Immediately After Extruder In Pipe Extrusion Line |
| Pipe Diameter Range | Supports Pipe Sizes From 16 Mm To 630 Mm |
| Cooling Method | Vacuum Sizing Combined With Spray Water Cooling System |
| Material Of Construction | Heavy-duty Stainless Steel Body For Corrosion Resistance |
| Vacuum Stability | Stable And Continuous Vacuum Pressure For Precise Sizing |
| Water Level Control | Advanced System, Resistant To Performance Issues In Contaminated Water |
| Valve Type | Long-life Air-controlled Valves Designed For Harsh Water Conditions |
| Cooling Efficiency | High-efficiency Cooling System Ensuring Uniform Temperature Control |
| Energy System | Equipped With High-efficiency Electronic Motors For Reduced Power Consumption |
| Operational Efficiency | Quick Start-up With Vacuum Retention Seals And Fast Tool Change Capability |

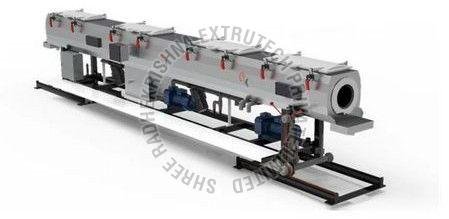

Positioned after the extruder, our vacuum sizing and spray cooling tanks are essential for achieving precise pipe dimensions and optimal surface quality. The controlled environment increases process accuracy and production capabilities for pipe diameters from 16mm to 630mm.
Advantages :
- Standard long-lasting air-controlled valves, suitable for contaminated water
- New water level control, not sensitive for contaminated water
- Rigid and sturdy stainless-steel construction
- Cost reduction because of quick tool change
- Stable vacuum and efficient cooling
- Highly efficient electronic motors
- Stable cool water temperature control
- Quick start up as seals maintain vacuum at out-of-shape pipe
| Business Type | Manufacturer, Exporter, Supplier |
| Application Position | Installed Immediately After Extruder In Pipe Extrusion Line |
| Pipe Diameter Range | Supports Pipe Sizes From 16 Mm To 630 Mm |
| Cooling Method | Vacuum Sizing Combined With Spray Water Cooling System |
| Material Of Construction | Heavy-duty Stainless Steel Body For Corrosion Resistance |
| Vacuum Stability | Stable And Continuous Vacuum Pressure For Precise Sizing |
| Water Level Control | Advanced System, Resistant To Performance Issues In Contaminated Water |
| Valve Type | Long-life Air-controlled Valves Designed For Harsh Water Conditions |
| Cooling Efficiency | High-efficiency Cooling System Ensuring Uniform Temperature Control |
| Energy System | Equipped With High-efficiency Electronic Motors For Reduced Power Consumption |
| Operational Efficiency | Quick Start-up With Vacuum Retention Seals And Fast Tool Change Capability |
Positioned after the extruder, our vacuum sizing and spray cooling tanks are essential for achieving precise pipe dimensions and optimal surface quality. The controlled environment increases process accuracy and production capabilities for pipe diameters from 16mm to 630mm.
Advantages :
- Standard long-lasting air-controlled valves, suitable for contaminated water
- New water level control, not sensitive for contaminated water
- Rigid and sturdy stainless-steel construction
- Cost reduction because of quick tool change
- Stable vacuum and efficient cooling
- Highly efficient electronic motors
- Stable cool water temperature control
- Quick start up as seals maintain vacuum at out-of-shape pipe
